How Many Turns on a Garage Door Spring: Step-by-Step Adjustment Guide

Learn the precise number of turns needed to properly adjust a garage door spring for optimal performance and safety.

Key takeaways:

  • Garage door spring adjustment is crucial for optimal performance and safety.
  • Identify torsion or extension springs before making adjustments.
  • Follow safety precautions, such as wearing gloves and safety glasses.
  • Calculate the number of turns based on door type and height.
  • Adjust torsion springs with winding bars, and relocate S-hooks for extension springs.

Importance of Correct Turns On Garage Door Springs

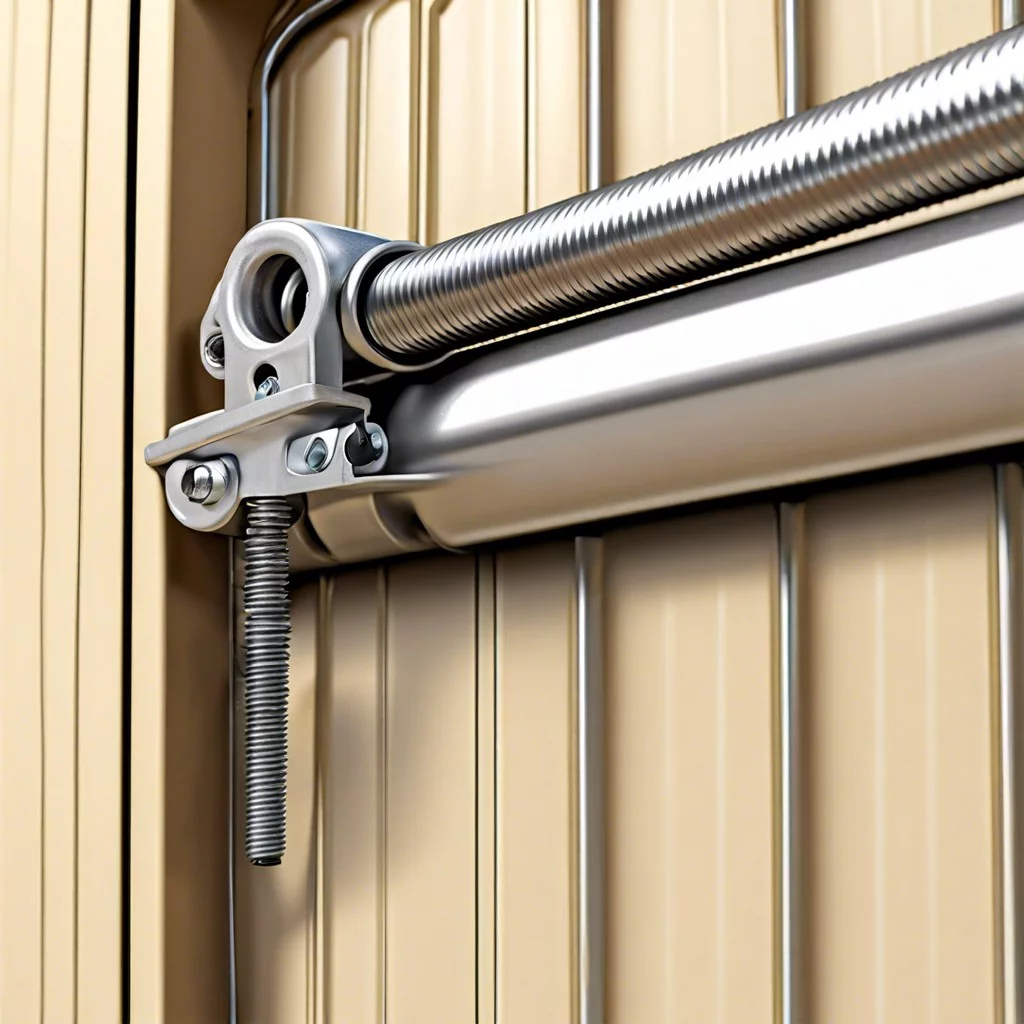

importance of correct turns on garage door springs

Precise adjustments to the torsion springs are critical for the balance and functionality of a garage door. The right amount of turns ensures that the door opens smoothly and remains stable in any position. Conversely, too few turns result in a heavy door that’s difficult to lift, while too many turns can cause the door to open too quickly or with excessive force, potentially leading to damage or injury.

The lifespan of the springs can also be impacted. Correctly set tension minimizes wear and tear on the garage door opener, springs, and other components, which can prolong their durability. Moreover, balanced tension across the springs helps in even weight distribution, reducing the likelihood of uneven wearing and the risk of premature spring failure.

It’s essential to get the spring tension just right to maintain the safety of users and the efficiency of the garage door mechanism. A properly balanced door will remain stationary halfway open, neither falling closed nor springing open, indicating a well-tuned system.

Identifying Spring Type: Torsion Vs. Extension

Determining the type of spring system your garage door uses is crucial before attempting any adjustments. Torsion springs are typically mounted horizontally above the door opening. As the door closes, cables attached to the bottom corners cause the springs to wind up, storing energy. When the door opens, this energy unwinds, assisting in lifting the door. One clear characteristic of torsion springs is that they run parallel to the door when it’s closed and are visible from the inside of the garage above the door.

Extension springs, on the other hand, are found on either side of the door, running along the horizontal tracks. They extend and contract as the door operates, hence the name. Unlike torsion springs, extension springs are fully visible when the door is closed as they stretch along the tracks. Their main identifier is the presence of a pulley system interconnected with cables and the springs themselves.

Recognizing these two main types helps ensure you carry out the correct maintenance tasks and apply the proper amount of turns when adjusting or replacing springs. Remember, each type requires a different approach and calculation for the right number of turns to maintain a well-functioning, balanced door.

Safety Precautions and Recommended Gear

Prior to attempting any adjustments on garage door springs, ensuring your safety is paramount. These springs are under significant tension and can cause serious injury if mishandled.

Always disconnect the garage door opener before starting to prevent the door from being activated unintentionally. Clamping the door in place with locking pliers above one of the rollers is also crucial to keep it from moving.

Wear heavy-duty gloves to protect your hands from metal edges and potential spring breakage. Safety glasses are non-negotiable; they’ll safeguard your eyes from debris and spring fragments should they snap.

Use the correct tools: winding bars for torsion springs are essential—they must fit snugly into the winding cone holes. Improvised tools, like screwdrivers, can slip and cause accidents.

Finally, never stand directly in the path of the springs while making adjustments. Position yourself to the side to minimize risk in the event of an unexpected spring release.

Calculating Turns: Standard Lift, Vertical Lift, and High Lift Spring Calculation

When dealing with a standard lift, a common rule is a quarter turn for every foot of door height. For instance, a 7-foot tall door would require 7 x 4 = 28 quarter turns on the spring.

In contrast, vertical lift and high lift doors require a more involved calculation because the drums differ and the springs must account for the additional lift and weight distribution. The formula involves the door height, vertical track length, drum circumference, and sometimes the weight of the door.

To determine the number of turns for a vertical lift system, one must calculate the number of cable drum rotations necessary to coil the cable onto the drum. It directly depends on the door height, the lift, and the drum’s characteristics.

High lift systems, combining vertical and horizontal track, require calculating the number of turns for the vertical lift part first and then adding it to the quarter turns needed for the horizontal stretch. This often means additional turns will be necessary beyond the standard quarter turn per foot of door height.

Always refer to the manufacturer’s specifications or consult a professional installer for precise calculations to ensure balanced and safe operation. Incorrect spring tension can lead to safety hazards and reduce the lifespan of your garage door.

Steps for Safely Adjusting and Replacing Garage Door Springs

Before making adjustments, ensure the garage door is secured to prevent movement. Disengage the door opener and clamp the door in place. Wearing safety glasses and gloves, use winding bars, never pliers or screwdrivers, to adjust torsion springs to avoid slippage and potential injury.

For torsion springs, insert a winding bar into the winding cone and keep a firm grip. Perform quarter-turn increments to avoid overwinding. For each turn, lock the bar in place and insert the second bar at the bottom. Carefully release the tension of the top bar to transfer the force to the second bar.

Extension springs require a different approach. Adjust these by relocating the S-hook to a different hole in the track bracket, balancing tension on each side of the door. This adjustment is less precise and typically requires more trial and error.

When replacing springs, disconnect the springs from the door and release the tension completely. Torsion springs require unwinding, while extension springs need unhooking. Install the new springs with equivalent tension as the old ones, using the calculated number of turns for your door type.

Regular maintenance checks can help mitigate the risks involved with spring tension adjustments. If there’s any doubt about safely performing these tasks, consult a professional. Garage door repairs involve significant risk, especially with spring tension, and professional support ensures safety and effectiveness.
